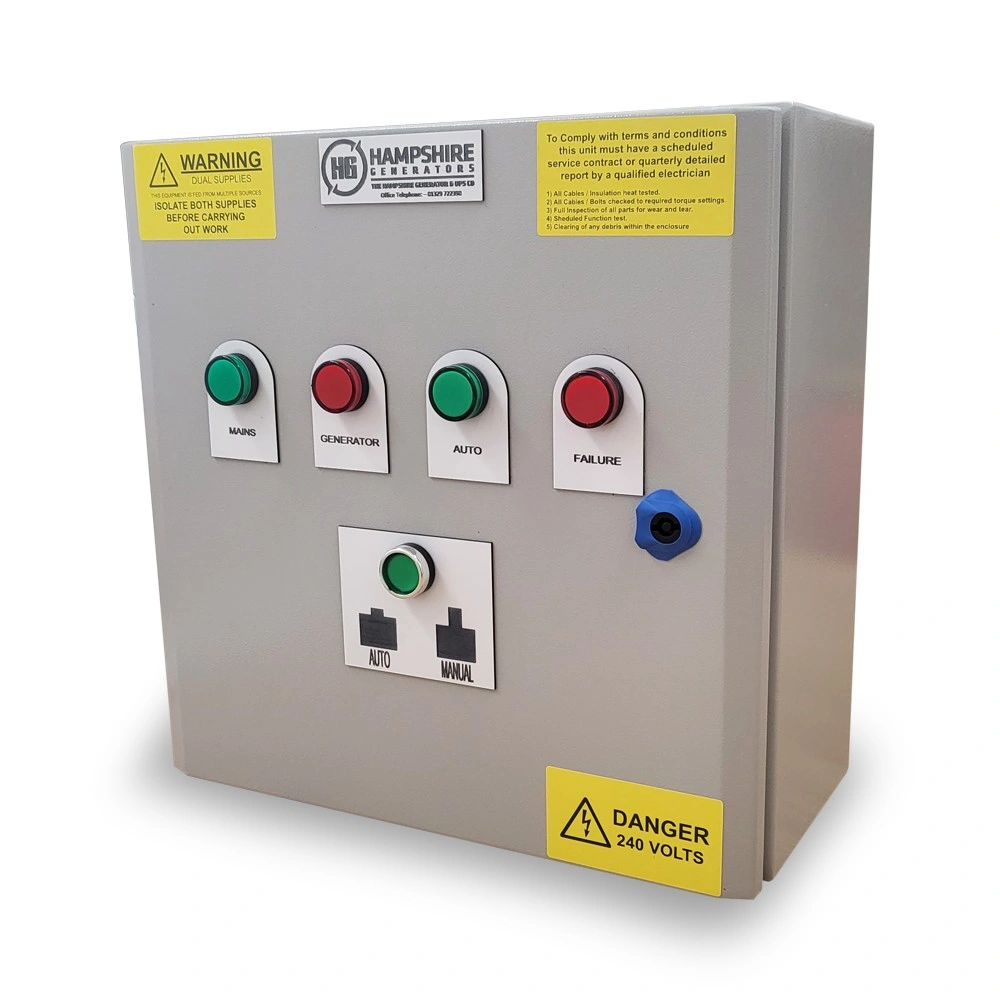

The Excel Power 100A Automatic Transfer Switch ATS Single Phase.
This automatic Transfer Switch (ATS) is designed to work with and compliment the Excel Power XLD single phase range of diesel generators. You no longer need to manually start your generator and switch things manually as this ATS does this all automatically. It is supplied with a 5m control cable with plugs to suit the generator and ATS panel
How Does a 100A Automatic Transfer Switch Single Phase Work?
This transfer switch should be permanently installed close
...This automatic Transfer Switch (ATS) is designed to work with and compliment the Excel Power XLD single phase range of diesel generators. You no longer need to manually start your generator and switch things manually as this ATS does this all automatically. It is supplied with a 5m control cable with plugs to suit the generator and ATS panel
How Does a 100A Automatic Transfer Switch Single Phase Work?
This transfer switch should be permanently installed close to the mains incoming supply to your building. In normal operation the load is supplying by the mains in the usual way but when the mains power is lost the ATS switch senses this loss and sends a signal to start your generator.
When the generator has started and is up to speed and frequency (normally around 8 to 10 seconds) this automatic changeover switch will automatically transfer the load to the standby generator set.
The automatic transfer switch will continually monitor the mains power and when this returns it will transfer the load back to the mains and initiate a cooling cycle and stop the generator. The transfer switch will then reset in readiness for the next power interruption.
General Specification of the 100A Automatic Transfer Switch Single Phase includes:
- 3 Pole mechanically & electrically interlocked pair of contactors.
- Mains incoming input
- Generator incoming input
- Load output terminals
- Mild steel enclosure
- Bottom gland plate
- Voltage monitoring relay for Mains supply
- Over & under voltage protection of Mains supply
- Panel status via LED indicators. Mains On Load, Plant On Load
- Two wire start interface for generator control (starting &stopping)
- Fuses for control & monitoring circuit protection
- Generator warm up timer
- Mains restoration timer
- Full set of electrical schematics
Installation Note
The system is intended to be installed by a professional electrician with experience in standby power. Please contact Hampshire Generators if you need any assistance. Hampshire Generators can also maintain your generator with a regular cost-effective service plan or one-off visit. Simply call 01329 722390 or inquire via contact us page for more information.
Read MoreComponent Manufacture:
- Lovato or similar
Amp Rating AC1:
- 100 Amp
Requirement:
- Residential Single Phase 230v
IP65 All Steel Enclosure:
- Height 600 mm
- Width 400 mm
- Depth 200 mm
