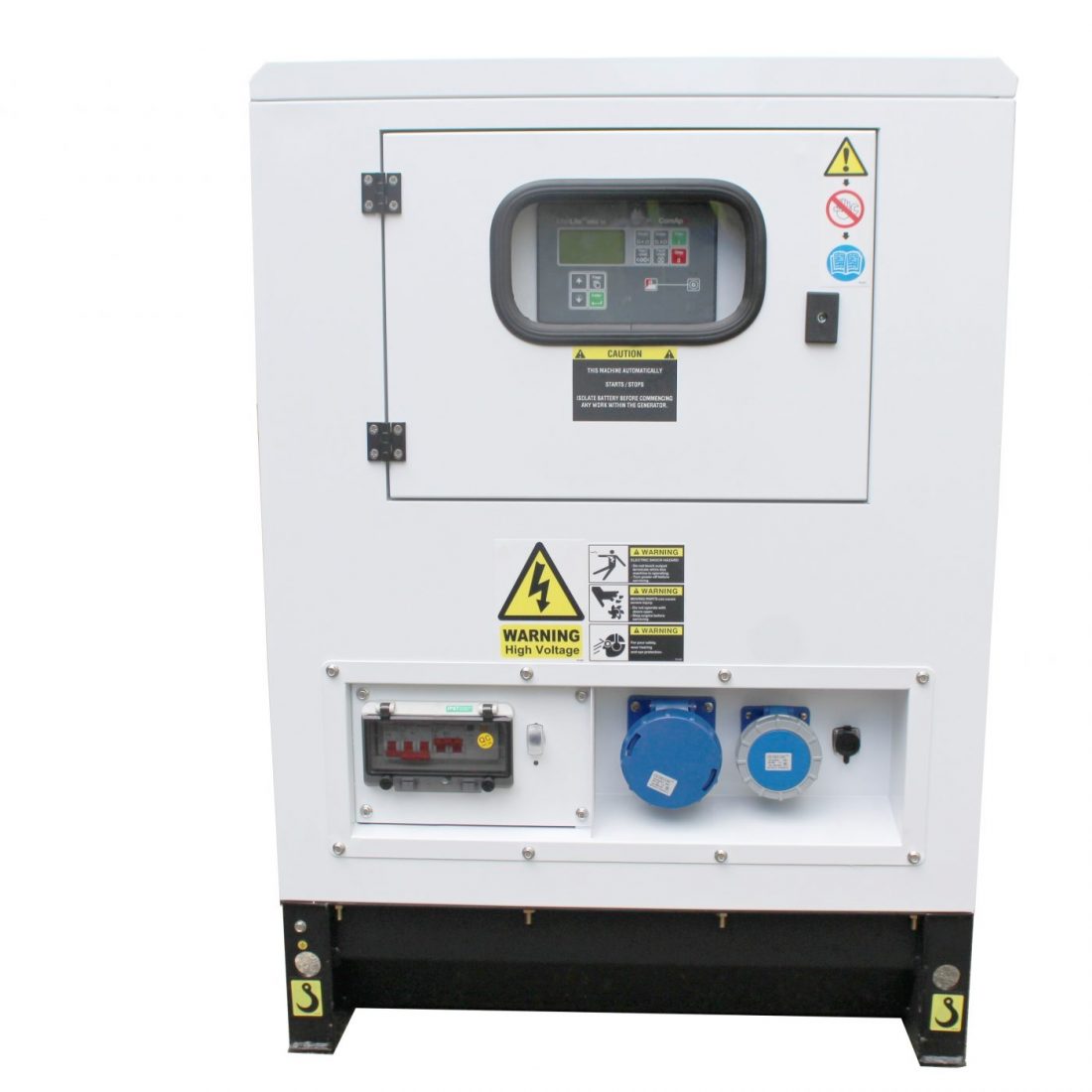

The Hyundai DHY9KSEm 11kVA Single Phase Diesel Generator.
A Powerful Single-Phase Diesel Generator Available from Hampshire Generators
The Hyundai DHY9KSEm is a powerful single-phase standby diesel generator which is designed to provide reliable power to your home or business when the National Grid lets you down. It has a much longer lifespan due to the 1500rpm unit which also means a lower noise level.
Hyundai DHY9KSEM = Clean Energy Output
Equipped with an AVR alternator to produce clean energy, the Hyundai DHY9KSEm is suited to powering
...A Powerful Single-Phase Diesel Generator Available from Hampshire Generators
The Hyundai DHY9KSEm is a powerful single-phase standby diesel generator which is designed to provide reliable power to your home or business when the National Grid lets you down. It has a much longer lifespan due to the 1500rpm unit which also means a lower noise level.
Hyundai DHY9KSEM = Clean Energy Output
Equipped with an AVR alternator to produce clean energy, the Hyundai DHY9KSEm is suited to powering any sensitive electronic equipment in your home or business, such as televisions, video game consoles, computers, laptops and more.
Low Noise Levels
Housed in a “silenced” weather-proof canopy, the Hyundai DHY9KSEm produces only 65dB @ 7 metres to prevent interrupting you, your family or your workforce when in action.
Long Service Life
All Hyundai 1500rpm diesel generator soundproof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection and extended life.
Hampshire Generators are happy to look after this unit thus giving you excellent peace of mind.
Automatic Start Operation
For the ultimate user convenience, the Hyundai DHY9KSEm can be paired with an ATS (Automatic Transfer Switch) system which will automatically turn on the generator when a loss of power to the property is detected. The ATS module will detect the mains return and safely transfer the load back and shutdown the generator. This is ideal for those who need to guarantee constant power, for example if you run servers or have refrigeration units.
For the recommended usage of this generator, please see here.
Hampshire Generators can also maintain your generator with a regular cost-effective service plan or one-off visit. Simply call 01329 722390 or inquire via contact us page for more information.
Read MoreMain Features :
- Frequency Hz 50
- Power factor cos ϕ 0.8
- Phase 1
Power Rating :
- Rated/Prime kVA 10
- Rated/Prime kW 8
- Max/Standby kVA 11.25
Engine specifications :
- Engine manufacturer Hyundai
- Model HY380
- Engine cooling system Water
- Displacement cm³ 1360
- Number of Cylinders 3
- Aspiration Natural
- Operating Speed-Nominal rpm 1500
- Speed governor Mechanical
- Fuel Diesel
- Starting system Electric
- Oil Capacity (Litres) 3.5
- Low Oil Shutdown Yes
Alternator Specifications :
- Alternator Model 164B
- Frequency Hz 50
- Voltage Regulation Method AVR
- ATS Port Yes
Dimensional data :
- Length (L) mm 1500
- Width (W) mm 760
- Height (H) mm 1070
- Dry weight Kg 530
Noise level :
- Noise Level @ 7m 75% load (dB) 62
- Noise Level @ 1m 75% load (dB) 68
Socket Type:
- 1 x230V/63A
- 1 x 230V/32A
